Automatic Pallet Wrapper: A Practical Assessment Checklist

Could a faster wrapping machine slow the line down? An automatic pallet wrapper may have an impressive stated cycle rate, but that figure alone won’t show whether it can handle your actual pallet mix, connect with upstream and downstream equipment, or fit the available space. The useful measure is how the complete wrapping process performs under everyday operating conditions.

Before investing in automation, define the requirements that matter to your operation. Throughput, load stability and variation, film requirements, operator involvement and line layout all affect whether an automatic system is suitable and how it should be specified. Comparing headline capabilities without considering these details can leave important constraints undiscovered.

This practical assessment checklist sets out what to define before requesting a specification. It covers pallet volumes, load dimensions and consistency, line interfaces, floor space, safety and operational support. Phoenix Handling Solutions Limited supplies pallet wrapping machinery specified around product type, throughput and available floor space, with wrapping considered alongside conveyor and wider packaging-line equipment. Use the criteria to build a clear brief and compare options on a consistent, measurable basis.

Key Takeaways

• Assess repeatability, operator involvement and the wider process to establish whether automation fits your operation.
• Record throughput, peak demand and pallet characteristics to define the requirements an automatic pallet wrapper must meet.
• Compare machine options against the same load sample, throughput target and site conditions for a consistent assessment.
• Validate normal running, peak demand, product changeovers and exception loads before approving a specification.
• Build a clear brief covering layout and line interfaces so wrapping machinery can be matched to your process.

Table of Contents

• When does an automatic pallet wrapper make operational sense?
• Which operating requirements should an automatic pallet wrapper meet?
• How should automatic pallet wrapper options be compared?
• What should be checked before approving an automatic pallet wrapper?
• How can Phoenix Handling Solutions support the next specification step?

When does an automatic pallet wrapper make operational sense?

Automation is worth assessing when wrapping is a repeated, defined task within a wider process, not simply because pallet volumes appear high. Consider how consistently loads arrive, how much their dimensions and stability vary, how wrapping affects the line’s pace and how operators currently handle each pallet. A system that suits a regular stream of similar loads may be less appropriate where presentation is unpredictable or loads need individual attention.

An automatic pallet wrapper automates some or all of the wrapping cycle; it does not, by itself, automate the complete movement of pallets through the line. This distinction matters when interpreting machine descriptions. A wrapping cycle can be automatic while load supply, transfer and removal still rely on operators or connected equipment.

What makes a pallet wrapper automatic?

An automatic system may receive a presented load, apply film through a programmed sequence and release the wrapped pallet for onward movement. The exact boundary depends on the configuration. Pallets may arrive and leave by conveyor, or an operator may still position loads, attach film or manage exceptions. Stretch wrap, also known as pallet wrap, is a highly stretchable plastic film used to secure items. The wrapping task can therefore be automated without automating the surrounding handling.

Semi-automatic equipment generally requires more direct operator input during the wrapping process, although the precise tasks vary by machine and setup. The labels “automatic” and “semi-automatic” are useful starting points, not complete specifications. Compare what each system does in your proposed layout, including how a pallet enters the wrapping area, how the cycle starts and how the finished load moves away.

Which operations should assess automation first?

Start with repeated tasks where pallets are presented consistently and wrapping follows a recognisable sequence. A recurring queue before dispatch, sustained manual handling across shifts or a wrapping stage that interrupts upstream production can justify closer assessment. These are prompts for investigation, not proof that automation will improve output. Record the current process first, including operator actions, waiting points and exceptions.

Load variation is just as important as task frequency. If product types create different pallet heights, overhangs or levels of stability, the process may need adjustments between loads or operator intervention for exceptions. Note whether loads arrive in a predictable orientation and whether the same wrapping requirements apply across the product mix. This helps separate routine work from cases that need different handling.

• Map the steps from pallet presentation to removal, noting where people intervene.
• Record recurring delays and manual handling demands across normal operating periods and shifts.
• Separate standard loads from irregular or unstable exceptions before judging the fit.

An operation is a stronger candidate for assessment when wrapping demand is repeatable, the load profile is understood and the proposed machine can connect sensibly with the surrounding process. Next, turn those observations into measurable operating and load requirements.

Which operating requirements should an automatic pallet wrapper meet?

A useful specification starts with operating evidence, not a target chosen in isolation. Record how many pallets need wrapping in a typical hour, how demand changes during peak periods, how many shifts the process covers and whether planned changes could alter the workload. Compare this demand with the time available at the wrapping station, including pallet arrival and removal. A stated machine cycle rate won’t describe the line’s actual capacity if loads queue, arrive unevenly or require manual attention.

Capture the load range as well as the average. Assess an automatic pallet wrapper against the products it will handle, including variations that affect presentation, wrapping and transfer. Stretch wrapping for beverages should be assessed against the product arrangement, pallet pattern and handling route. Keep exceptional loads visible in the specification rather than allowing them to disappear into an average figure.

How should throughput and load variation be recorded?

Use representative operating periods to document typical and peak pallet volumes, then group loads by dimensions, weight, packaging, stability and wrapping frequency. Include overhang, load height and any variation in pallet condition or orientation that affects handling. Record how often each load type occurs and describe unusual cases separately. This provides a clearer basis for assessing capacity and identifying which loads need distinct settings or handling.

What layout and interface details matter?

Map the wrapping area and adjacent process, including infeed and discharge directions, pallet travel, operator positions and nearby equipment. Note floor-space limits, access routes and the clearance needed for routine servicing. Identify how pallets are presented and removed, and whether conveyors or existing packaging-line controls need to exchange signals with the wrapper. These details help expose integration constraints before selecting a machine arrangement.

Use a consistent record for each operating and load requirement:

• Process: shifts, normal and peak volumes, wrapping frequency and planned changes.
• Load: pallet dimensions, load height and weight, packaging, overhang, stability and product variation.
• Capacity: required pallets per hour, demand patterns, queueing points and time available for wrapping.
• Layout: floor space, access routes, infeed and discharge, operator movement and servicing clearance.
• Interfaces: pallet presentation, transfer equipment, adjacent machinery and control connections.

Check the floor plan against the way people and pallets move during a normal shift. A footprint that fits on a drawing may still obstruct access or create awkward operator movement if the infeed, discharge or film-handling area is poorly positioned. Include adjacent conveyors and packaging equipment, since the wrapper’s operating pace and transfer points must align with the wider process.

Checklist summary: Capture the process, load profile, required capacity and site layout, including interfaces, access and foreseeable changes. Phoenix Handling Solutions Limited specifies pallet wrapping machinery around product type, throughput and available floor space. Discuss your pallet wrapping requirements with the process information to hand.

How should automatic pallet wrapper options be compared?

Compare each option against the same operating brief, not against isolated headline figures. Use representative loads, a shared throughput target and the same site conditions, then record what happens during a complete wrapping cycle. A stated cycle rate may exclude pallet transfer, operator actions, film changes or interruptions, so it shouldn’t be treated as a direct measure of line output.

For each configuration, document the wrapping sequence, film application, operator input, changeover requirements and how the wrapped load is contained. Note any assumptions behind the comparison, such as a specific load type or uninterrupted feed. This makes differences visible and avoids judging an option on easier conditions than the others.

How do wrapping mechanisms and film use affect the comparison?

Core-break and powered pre-stretch systems apply film differently. A core-break arrangement creates film tension as the roll is drawn against resistance; a powered pre-stretch system uses driven rollers to stretch film before it reaches the load. Compare the resulting application on the loads that matter to your operation. Load shape, stability and containment needs influence whether film is applied consistently, so don’t assume one approach suits every product or configuration.

Record film consumption during comparable trials, alongside the finished load’s containment and any signs of movement or damage. Treat potential film reduction or improved stability as outcomes to assess, not guaranteed benefits. Results depend on the load, film and wrapping settings used in the test.

How should integration and operating flexibility be weighed?

Assess each machine as part of the line. A standalone arrangement may require people to position and remove pallets, while an integrated option may depend on conveyors and coordinated controls. Compare product changes, pallet variation and anticipated volume changes as well. An option that suits today’s routine may introduce extra handling or changeover work if the product mix shifts.

Use one evidence table for every option. Record observations from the same load sample, target and site conditions, and keep unresolved points visible rather than treating assumptions as confirmed performance.

 Requirement

 Evidence

 Operational impact

 Unresolved constraint

    Wrapping sequence

 Observed cycle steps and operator actions

 Shows where manual input remains

 Exception handling not trialled

   Film application

 Trial results for representative loads

 Indicates containment and film-use performance

 Other load types not assessed

   Line integration

 Infeed, discharge and control requirements

 Shows how the wrapper fits the process

 Interface details still to resolve

   Changeovers

 Actions recorded between product types

 Highlights adjustment and operator demands

 Planned product changes not tested

  This gives the automatic pallet wrapper assessment a consistent basis: compare observed performance, integration needs and outstanding constraints together. The strongest option is the one that meets the defined process requirements under representative conditions, not simply the one with the highest stated speed.

What should be checked before approving an automatic pallet wrapper?

Approval should follow a structured check of the current process and the machine’s performance against agreed operating conditions. A demonstration with a single convenient load may show the wrapping sequence, but it won’t establish how the system handles peak demand, product changes or known exceptions. Set the test conditions and acceptance criteria before the trial so results can be assessed consistently.

Testing representative loads reduces specification assumptions by showing how the proposed system performs with the products, operating demands and line conditions it must handle.

Which baseline information should the team collect?

Record current wrapping time, each operator task, film use and recurring load problems. Include shift patterns, downtime causes and planned production changes, since these can affect future demands on the wrapping area. Separate measured observations from estimates and assumptions, and note how each figure was collected. A clear baseline helps distinguish trial results from expectations and gives the team a reference for judging operational suitability.

What should a practical machine trial demonstrate?

Use representative pallet formats under agreed operating conditions, including the normal process and periods of peak demand. Observe load stability, film application, the full cycle sequence and operator interaction. Include product changeovers and known exception loads, recording any adjustments or interventions needed. Where the wrapper connects to conveyors or other equipment, observe whether pallet transfer and line operation remain coordinated during the test.

Use an ordered validation sequence to move from recorded evidence to a decision:

1. Document the baseline. Capture current wrapping activity, operator input, film use, downtime and recurring load issues, labelling estimates clearly.
2. Agree the test conditions. Select representative pallet formats, define normal and peak operating conditions, and identify changeovers and exception loads to include.
3. Set acceptance criteria. Agree how output, finished-load condition, film application and operator tasks will be assessed. Set thresholds against the operation’s requirements rather than assuming a machine’s stated rate is sufficient.
4. Run and observe the trial. Record the cycle, interruptions, required adjustments and effects on connected equipment. Keep observations for each load type distinct.
5. Review gaps before approval. Compare the results with the criteria and note any untested condition, unresolved interface or load type that may affect the specification.

Keep the criteria practical and observable. For output, record completed pallets over the agreed operating period. For load condition, check whether the load remains secure and undamaged. For film application, document coverage and consistency; for operator tasks, list the actions still required. If a criterion isn’t met, record the conditions and adjustment needed rather than relying on a general pass or fail.

Phoenix Handling Solutions Limited specifies pallet wrapping machinery around product type, throughput and available floor space. Discuss your pallet wrapper specification using the baseline and trial criteria your team has recorded.

How can Phoenix Handling Solutions support the next specification step?

A useful project discussion begins with the operating evidence behind the proposed machine. Phoenix Handling Solutions Limited supplies pallet wrapping machinery specified around product type, throughput and available floor space. A clear brief helps relate an automatic pallet wrapper to the actual loads, capacity requirements and site conditions, rather than treating machine selection as a standalone equipment decision.

What information should be ready for a project discussion?

Prepare information that describes both the pallet profile and the process around it. Representative dimensions, photographs and notes on product variation can explain differences that a single average load won’t show. Add current and target throughput, shift patterns and known constraints, then include a simple layout indicating the wrapping area and connected equipment.

• Loads: Representative pallet dimensions, load heights and weights, photographs, packaging types and variation between products.
• Operating demand: Current and target throughput, shift pattern, peak periods and any planned process changes.
• Site conditions: Available floor space, access routes, pallet presentation and operator movement around the wrapping area.
• Line connections: Existing conveyors, upstream and downstream machinery, and relevant control interfaces.
• Validation: Trial loads and agreed criteria for output, finished-load condition, film application and operator tasks.

How does project-specific specification support implementation?

These details help assess the proposed wrapping equipment against the loads it must handle, the required capacity and the physical limits of the site. They also show where conveyor transfer or other packaging machinery forms part of the line configuration, and where the wrapping process remains separate. The aim is to make requirements and constraints clear before settling the specification.

Describe foreseeable changes alongside current conditions. A planned shift in product mix or volume may affect how the wrapping area needs to operate, while servicing access and spare-parts support are relevant to ongoing equipment use. Considering these points during specification keeps the discussion grounded in operational continuity without assuming a particular machine arrangement or outcome.

Phoenix Handling Solutions Limited can use your operating requirements to specify pallet wrapping machinery in relation to the wider packaging process. Bring the available load and layout information, including details still being refined. Discuss your pallet wrapping requirements as a practical next step.

Turn the assessment into a clear next step

Use the specification as a shared working document for production, engineering and warehouse teams. Their priorities may differ: production needs a steady flow, engineering needs workable interfaces and access, while warehouse staff need loads to arrive and leave in a practical way. Recording these operational priorities alongside the machine requirements can help keep decisions aligned as the project develops.

Keep the document current if product formats, volumes or the line arrangement change. Assess a proposed automatic pallet wrapper against the process it will serve, not an outdated description of it. This gives the next discussion a useful starting point and makes it easier to identify which assumptions still need evidence.

Phoenix Handling Solutions supplies pallet wrapping machinery specified around the application. Share your operating brief to begin a project discussion: Discuss your pallet wrapping requirements. A considered specification is a practical foundation for choosing equipment that fits the operation.

Frequently Asked Questions

What is the difference between an automatic and a semi-automatic pallet wrapper?

An automatic pallet wrapper performs a programmed wrapping cycle with less direct operator input, while a semi-automatic machine typically needs an operator to start or manage parts of the cycle. The distinction depends on the configuration. For example, one setup may require an operator to position a pallet and attach the film; another may start wrapping once a load reaches the machine. Compare the tasks involved, not just the machine label.

Can an automatic pallet wrapper handle different pallet sizes?

It may handle a range of pallet sizes if the machine configuration and wrapping settings suit those loads. Define the smallest and largest footprints, height differences and unusual shapes in your product mix. For instance, a compact pallet with protruding cartons may need different film coverage from a taller, uniform load. Confirm that the full range can be presented, wrapped and transferred as intended, and identify any loads that may need a separate process.

Does an automatic pallet wrapper remove the need for an operator?

No. Automation can reduce direct involvement in the wrapping cycle, but people may still need to replenish film, monitor operation, inspect finished loads and respond to interruptions. The operator role depends on how pallets enter and leave the machine and how exceptions are managed. Before specifying equipment, map who handles film changes, routine checks and non-standard loads, so staffing assumptions reflect the actual process rather than the machine’s automation label.

Can an automatic pallet wrapper connect to an existing conveyor?

Conveyor integration depends on the layout and equipment interfaces. Check how the conveyor presents and removes pallets, including direction of travel, transfer points and spacing between loads. The control arrangement also matters: the wrapper and conveyor need to coordinate movement so pallets don’t accumulate in the wrong place. Include existing conveyor details in the project brief to identify any interface or layout changes needed.

How can an automatic pallet wrapper help control stretch film use?

A wrapper can apply film through a repeatable sequence, and some configurations use powered pre-stretch to extend film before application. The effect on film consumption depends on the machine, film and load, so assess it with comparable trials rather than assuming a reduction. Record film used alongside the finished load’s containment. For example, compare loads of the same product and dimensions, then check whether the wrap remains suitable for handling and dispatch.

What information is needed to specify an automatic pallet wrapper?

Prepare load dimensions, weights, packaging details and examples of product variation, alongside current and target pallet volumes and shift patterns. A simple floor plan showing access, pallet routes and nearby equipment can clarify space and integration requirements. Note recurring load problems and planned production changes as well. This gives Phoenix Handling Solutions a practical basis for specifying pallet wrapping machinery around product type, throughput and available floor space.

Stretch wrapper for irregular loads: compare machine options

The best stretch wrapper for irregular loads is not necessarily the one designed for the most unusual-looking pallet. The key is how the load behaves during wrapping: whether it can tolerate rotation, how stable it is and how its shape affects film application.

Loads that vary in height, footprint or weight can be difficult to contain consistently, especially when products protrude or shift. A turntable wrapper may suit an irregular load that remains stable as it rotates, while a rotary arm keeps the pallet stationary during wrapping. A rotating ring may also suit some higher-throughput lines. The right choice depends on the load and operating conditions, not shape alone.

This article compares wrapper configurations against practical factors such as load stability, dimensions, throughput and available line space. It explains which characteristics matter when selecting equipment and what production and handling information to prepare. Use these criteria to assess options against your actual pallets rather than assuming a standard wrapper will suit every load.

Key Takeaways

• Separate unusual pallet geometry from instability, fragility and variation between loads to identify the actual wrapping challenge.
• Assess how load presentation and movement during the wrapping cycle may affect containment consistency.
• Compare a stretch wrapper for irregular loads by its operating principle, load handling and fit with the production line.
• Record representative minimum, maximum and atypical load dimensions, alongside handling and output requirements.
• Phoenix Handling Solutions Limited can specify pallet wrapping machinery around product type, throughput and available floor space.

Table of Contents

• What makes an irregular load difficult to stretch-wrap?
• How do stretch wrappers interact with irregular pallet loads?
• Which stretch-wrapper configurations suit different irregular loads?
• How should you assess a wrapper for your irregular loads?
• How can Phoenix Handling Solutions Limited support an irregular-load wrapping application?

What makes an irregular load difficult to stretch-wrap?

An irregular pallet load may have a non-rectangular footprint, uneven height, changing layer profiles or products that extend beyond the pallet edges. An irregular load is a palletised unit whose shape, dimensions or product arrangement varies enough to affect how wrapping film contacts and contains it. This describes geometry, not necessarily poor stability. An unusual shape can be secure, while a neatly stacked load can still shift or compress.

The distinction matters because a stretch-wrap cycle must apply film in a repeatable pattern around the load. Projections, recesses and exposed edges can affect where film contacts the load and how it bridges gaps. The challenge depends on how these features interact with load stability and the machine’s method of moving the pallet or delivering film.

Which load characteristics matter most?

Assess shape, condition and variation separately. Overhanging products extend beyond the pallet footprint, leaving edges exposed to contact or snagging. A tapered stack narrows or widens towards the top, changing its profile through the wrapping height. Uneven layer profiles create local high and low points that can affect film contact on each turn.

Dimensions may also vary between batches. Changes in height, footprint or product orientation can alter the load profile even when the pallet type stays the same. Fragile or compressible packaging adds another consideration: pressure that contains rigid cartons could deform softer packs. Record these characteristics rather than treating every non-standard pallet as one category.

Why does a standard wrapping cycle sometimes struggle?

A standard cycle follows a set path and applies film as the load is presented to the machine. If the profile changes sharply, film may bridge a void rather than follow the surface, or catch on a protruding edge. Uneven geometry can also make containment less consistent across faces or layers. These are potential application issues, not proof that a particular wrapper cannot handle the load.

Separate machine suitability from load presentation. A leaning stack, loose products or an off-centre arrangement may move during handling before the wrapper can contain it. A stable but awkwardly shaped load needs a different assessment from one that shifts during normal movement. Check how pallets are built and transferred, as well as how the wrapping cycle handles them.

Film and load condition matter too. The same setting may behave differently with different packaging surfaces, edge profiles or load arrangements. Avoid assuming that a machine change alone will resolve inconsistent containment. Assess the actual load and film combination under representative operating conditions before drawing conclusions about wrapper performance.

How do stretch wrappers interact with irregular pallet loads?

A wrapping cycle brings together three factors: how the pallet moves, how film is delivered and how consistently the load is presented. As the cycle progresses, film is laid around the load in overlapping passes. The aim is to contain the unit without damaging its products or packaging. The balance depends on the load profile, film and machine settings, so assess the actual application rather than judging it from appearance alone.

Wrapping consistency depends on the relationship between load stability and machine movement. If the pallet turns, its contents move during film application. If the film-delivery system travels around a stationary pallet, the load itself remains still. Neither approach suits every awkward profile automatically. The key question is whether the load can stay intact through the movement and handling required by the cycle.

Load stability, rotation and film application

A turntable rotates the pallet as film is applied, while a rotary-arm or ring arrangement moves the film-delivery system around a stationary load. Rotation may be acceptable for a secure, well-presented pallet. A fragile, light or top-heavy load needs closer assessment if movement could disturb its arrangement. A load can be geometrically unusual yet stable, or have a regular outline but shift during handling.

Film must contain the load without applying undue pressure to vulnerable packaging. Protruding corners, soft packs and gaps can affect film contact, but no universal setting suits every combination. Nassco’s discussion of irregular pallet loads and wrapper options also illustrates why load behaviour informs configuration choices. Assessing representative loads with the intended film helps establish how the application behaves.

Where conveyors and line layout affect the result

The wrapping stage does not operate in isolation. Consider how a pallet leaves the preceding process, reaches the wrapper and transfers to the next stage. A load that arrives skewed, inconsistently positioned or inadequately supported may be difficult to present repeatably, whatever wrapping principle is used. Conveyor height, transfer points and space for equipment and operator access can all affect the installation.

Map the full route, including infeed, wrapping position and outfeed, rather than measuring only the machine footprint. Note obstructions, access for routine operation and space for any changes to the conveyor arrangement. These conditions help determine whether a proposed system can fit the line and handle its normal flow. Phoenix Handling Solutions Limited’s industrial pallet wrapping machine buying guide covers wider considerations for assessing a wrapping application.

A stretch wrapper for irregular loads should be considered alongside the handling route and the load’s response to movement. Phoenix Handling Solutions Limited supplies pallet wrapping machinery that can be specified around product type, throughput and available floor space. Reviewing these conditions together frames the equipment discussion around the actual line, not just the wrapper. Find out more about pallet wrapping machinery for production and distribution applications.

Which stretch-wrapper configurations suit different irregular loads?

Wrapper choice depends on how the load can be handled, how film needs to reach its surfaces and how the machine fits the line. A turntable rotates the pallet; rotary-arm and ring designs move the film-delivery assembly around a stationary load. These principles help frame the comparison, but do not establish suitability by themselves. Dimensions, stability, product sensitivity and operating conditions all matter.

Configuration suitability depends on load behaviour and operating conditions, not on irregular shape alone. Use the comparison below as a starting point, then assess representative pallets and the planned line arrangement.

   Configuration

 Load movement

 Possible fit

 Assessment caveat

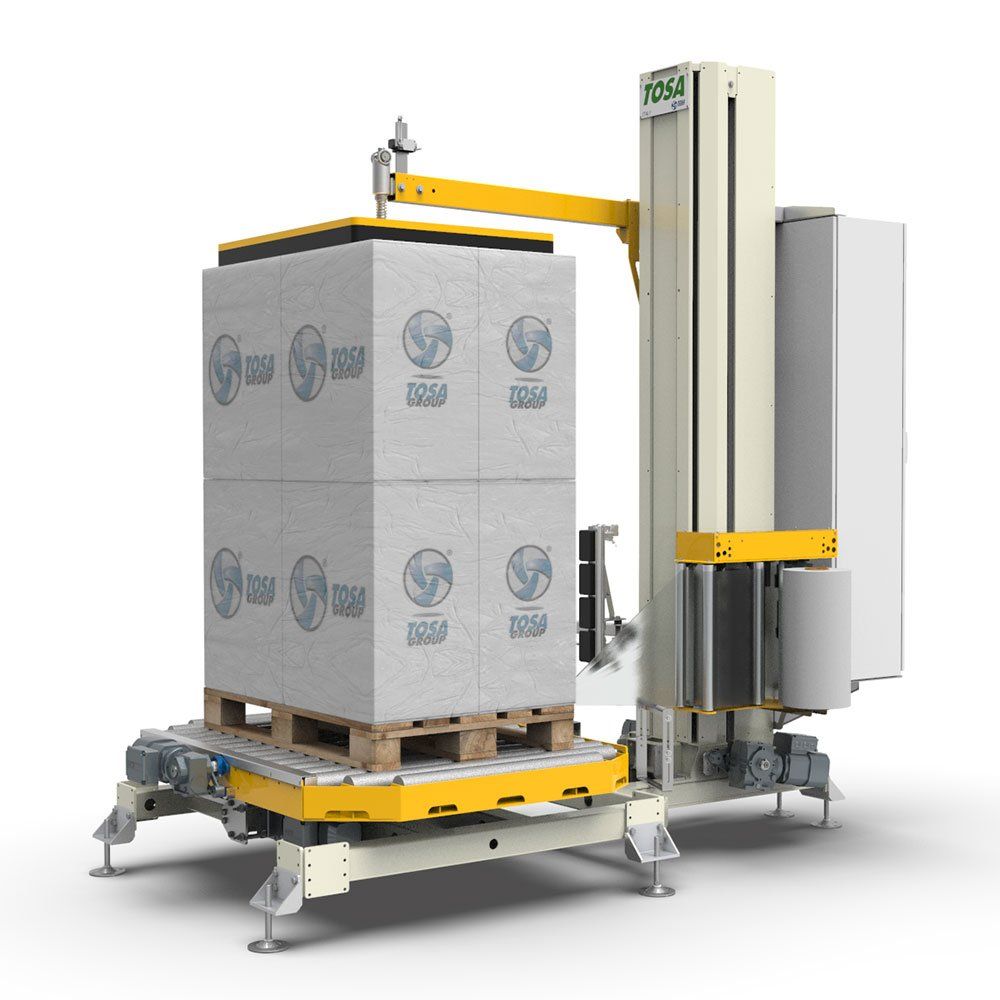

    Turntable

 The pallet rotates as film is applied.

 Loads that remain stable during rotation, including some non-standard profiles.

 Assess whether turning affects the load and whether positioning is repeatable.

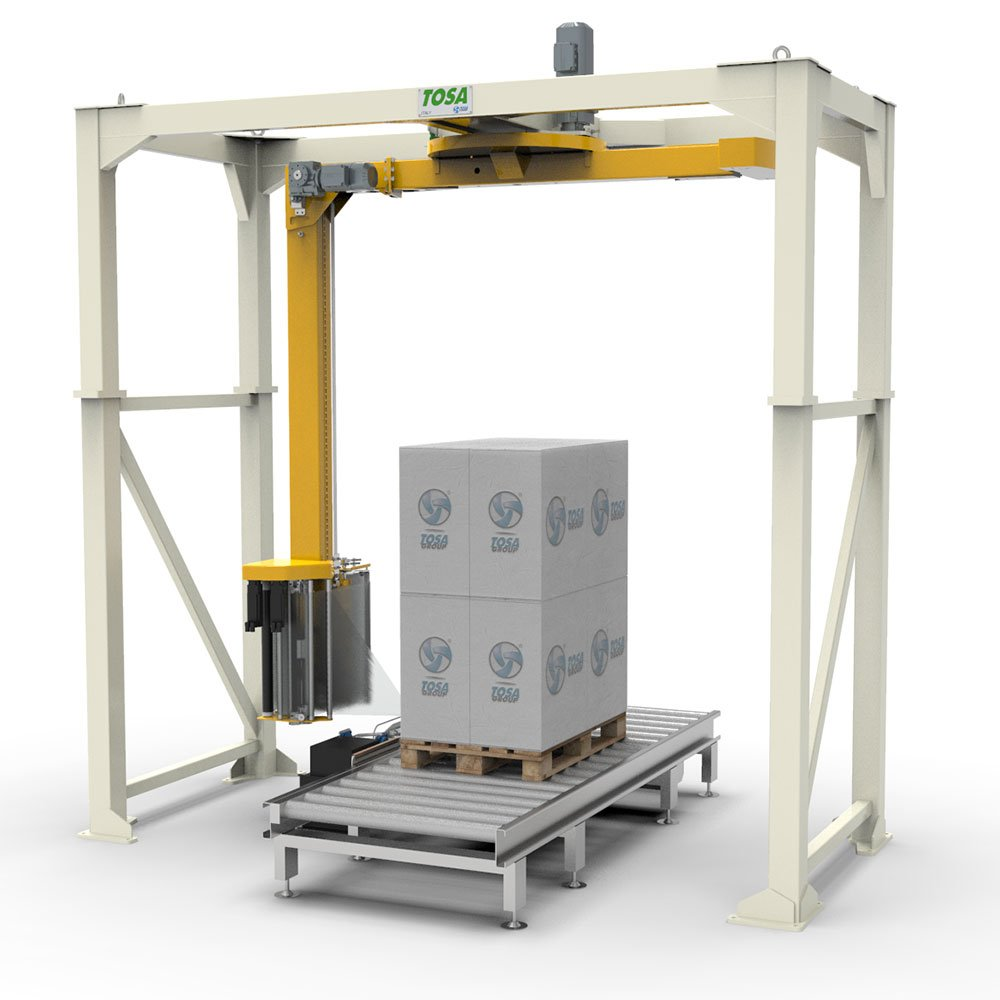

   Rotary arm

 The pallet remains in position as the arm travels around it.

 Loads for which rotation could disturb the product arrangement.

 Consider load dimensions, access and the machine’s fit with the line.

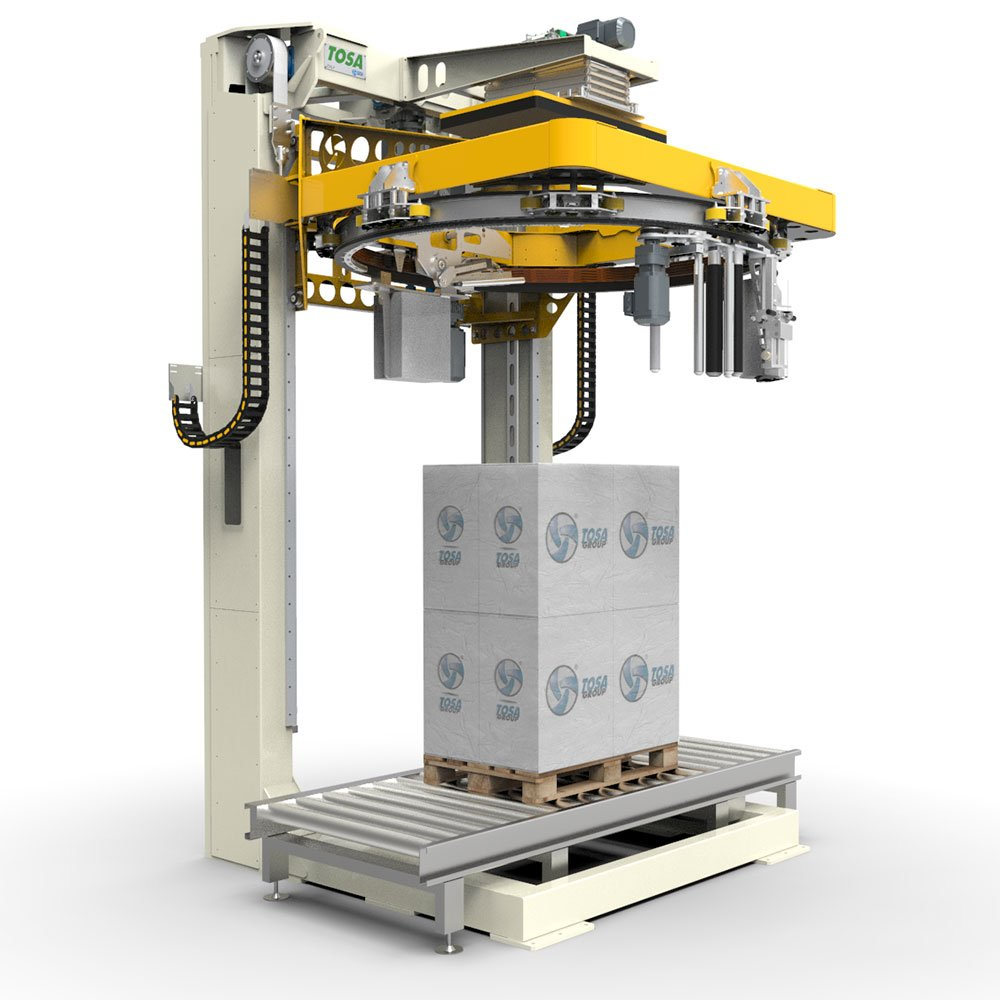

   Rotating ring

 The pallet remains in position as the ring carries film around it.

 Applications where this wrapping principle suits the required process and layout.

 Assess the specific machine, load profile and integration requirements.

  Turntable wrappers: when does rotating the load fit?

A turntable carries the pallet around a vertical axis while film is applied. It can suit an irregular load if products remain stable through rotation and the pallet can be positioned consistently. A protruding corner or uneven profile does not automatically rule out this arrangement, but the actual load and film application need assessment. Consider whether movement could unsettle fragile, top-heavy or loosely arranged products.

Rotary-arm and ring wrappers: when does the film move instead?

With a rotary-arm or ring arrangement, the load stays in position while the film-delivery system moves around it. This changes the movement imposed on the pallet and may matter for loads that are sensitive to rotation. The machines differ in their mechanical arrangement, so compare the specific equipment and line conditions rather than assuming the two are interchangeable. The main stretch-wrapper machine designs provide further context on these principles.

For a stretch wrapper for irregular loads, compare the load’s behaviour with the movement required by each configuration. Then consider footprint, access and how pallets enter and leave the wrapping position. Include representative load sizes and arrangements in the assessment: the most challenging pallet may set different requirements from a regular production load. Do not select a configuration on shape alone.

How should you assess a wrapper for your irregular loads?

Base the specification on representative pallets and how they move through the operation, not on a single ideal load or the wrapper cycle alone. A structured assessment distinguishes essential requirements from occasional exceptions and gives machine comparisons a consistent basis. Include awkward formats that occur less often, as they may reveal constraints that routine production loads do not.

Build a representative load profile

Measure the pallet footprint and overall load height, including overhangs. Record minimum and maximum dimensions, then note atypical formats and changes in product orientation between batches. Add weight, packaging fragility and any observed movement during handling. These details describe the application more accurately than a general label such as “irregular”.

1. Record load profiles. Measure representative minimum, maximum and atypical pallets. Capture footprint, height, overhangs and differences between product formats.
2. Observe handling. Follow loads through collection, transfer and positioning. Note leaning, shifting, compression or changes to the arrangement before wrapping.
3. Define output needs. Set out the required throughput alongside the expected product mix and how often formats change. Include practical requirements for loading, unloading and changeovers.
4. Assess the layout. Map available floor space, conveyor interfaces and the route into and out of the wrapping position. Account for operator access and room for normal tasks.

Compare operational fit, not just the machine cycle

Cycle performance is only one part of the comparison. Consider whether the arrangement works with incoming flow, downstream transfer and product changeovers. A wrapper may suit a particular pallet profile yet need adjustments to its position or conveyor connections to fit the existing process. Assess the space around the equipment as well as its footprint, including operator access.

Before finalising a specification, assess representative loads with the intended wrapping arrangement and film. Include regular pallets and less frequent formats that are most likely to challenge repeatability. Record the settings used, the load condition before and after wrapping, any film breaks or rework, and whether the result meets the operation’s containment and product-protection requirements. This provides a consistent basis for comparing options.

Define success in observable terms. For example, the load should remain in its intended arrangement after wrapping and routine handling, and the process should accommodate the expected product mix and output. Set criteria according to the goods and their journey. Assess a stretch wrapper for irregular loads against the whole application, including the line and the load, rather than a machine description in isolation.

Prepare your load measurements and operating requirements for an equipment discussion. Discuss pallet wrapping machinery for your application with Phoenix Handling Solutions Limited. Its equipment can be specified around product type, throughput and available floor space.

How can Phoenix Handling Solutions Limited support an irregular-load wrapping application?

Selecting a wrapper for irregular pallets is an application-led exercise. Phoenix Handling Solutions Limited supplies pallet wrapping machinery and specifies equipment around the load, required output and available line space. This keeps the discussion focused on how the equipment needs to work within the operation, rather than on a machine category in isolation.

From load data to an equipment specification

Start with a clear picture of the loads and the process around them. Bring together representative pallet profiles, the handling sequence, expected throughput and space available for equipment. Include less common formats as well as routine loads, and note differences in how products are positioned or transferred. This information helps define the operating conditions the system needs to accommodate.

These inputs inform the choice and specification of a stretch wrapper for irregular loads. Product type helps frame the application, throughput indicates the output requirement, and floor space affects how equipment can be arranged. Account for how pallets arrive at the wrapper and leave it, since the machine must fit the actual flow of the line.

Where the wrapping station forms part of a wider packaging process, conveyor systems may be relevant to the overall arrangement. They can connect the wrapper with upstream or downstream stages in a way that reflects the site layout and material flow. Consider the wrapping machine and its interfaces as part of the same application, rather than treating the wrapper as a standalone item.

Plan the next step around the operating requirement

Prepare a concise application brief for discussion. It can include:

• Representative load dimensions, product types and any unusual formats.
• How pallets are presented, handled and transferred through the line.
• Required throughput and the frequency of product changeovers.
• Available floor space, conveyor interfaces and operator access requirements.
• What the wrapped load needs to achieve in the operation.

This record gives the equipment discussion a practical basis and helps distinguish essential requirements from occasional exceptions. It also supports a considered comparison of standard or custom-engineered machinery, based on the application’s needs.

Servicing and spares can form part of wider equipment planning where ongoing support is relevant to the operation. The focus remains on matching the wrapping system to the product, throughput and available space, with conveyor integration considered where it contributes to the line arrangement.

To discuss your load profile and wrapping requirements, discuss your pallet wrapping application with Phoenix Handling Solutions Limited.

Make the next equipment decision evidence-led

Use the load profile as a working reference when planning a packaging investment. A clear record of the operating requirement helps production, logistics and engineering teams compare options against the same priorities, rather than relying on assumptions about what an irregular pallet needs. For a stretch wrapper for irregular loads, turn those priorities into an application brief that reflects day-to-day handling as well as exceptional formats.

Phoenix Handling Solutions supplies pallet wrapping machinery, with equipment specified around product type, throughput and available floor space. Where the application calls for a wider line view, conveyor systems, servicing and spares can also form part of the equipment discussion. The proposed arrangement should reflect the operation’s practical requirements, rather than assume one configuration suits every load.

Bring your load information and line requirements together, then discuss your pallet wrapping application with Phoenix Handling Solutions. A considered specification starts with evidence from your own operation, giving you a sound basis for the next decision.

Frequently Asked Questions

Can a stretch wrapper handle pallet loads with products overhanging the edges?

Yes, a wrapper may handle overhanging products if the load profile and wrapping method suit them. Measure the greatest projection on each side and check whether exposed packaging edges could snag or be damaged during handling. Also consider whether the overhang is consistent or changes between pallets. Assessing a representative load can show whether the film path and load presentation suit the actual product arrangement.

Is a rotary-arm wrapper better for an unstable pallet load?

It may be suitable because the pallet stays stationary while the film-delivery arm moves around it. This can avoid rotating a load that is sensitive to movement, but it does not correct loose stacking or instability during transfers. Assess the pallet from its arrival at the wrapping position through to its exit, and consider whether it remains intact during normal handling as well as during the wrapping cycle.

What happens if pallet dimensions vary between production batches?

Variation can affect whether each pallet is presented consistently and whether the wrapping cycle suits the full range of formats. Record the smallest, largest and less common dimensions, including changes in height and orientation. For example, a batch with a wider footprint needs a different assessment from a taller, narrower format. Use this range to define changeover needs and the operating limits for the equipment specification.

Can irregular loads be stretch-wrapped without rotating the pallet?

Yes. Rotary-arm and ring configurations apply film by moving the delivery system around a pallet held in position. This can be relevant if rotation risks disturbing products, but the load still needs to arrive and remain suitably positioned. Include the space around the wrapping area and the infeed and outfeed route in the assessment, as these can affect how a stationary-load arrangement fits the line.

How do you test a wrapper with an irregular load before specifying equipment?

Assess representative pallets, including a routine format and the most challenging combination of height, overhang or product arrangement. Record the film and settings used, then inspect the wrapped load for displaced products, damaged packaging, loose areas and film breaks. Repeat the assessment under normal handling conditions, not just at the wrapping position. Comparing the results helps identify whether changes to presentation, film or machine configuration are needed.

Does an irregular load always need a bespoke wrapping machine?

No. An irregular profile does not by itself require bespoke equipment. A standard machine may suit the application if its operating range and arrangement accommodate the actual loads and line conditions. Custom-engineered equipment may be considered where product formats, throughput or available space create specific constraints. Base that decision on representative load measurements and process requirements, rather than assuming unusual geometry alone determines the level of customisation needed.

Stretch wrapping for food and beverage pallets

A stable-looking beverage pallet isn’t necessarily a stable load. Bottles, cans and multipacks create different load profiles, and the way each pallet behaves during handling depends on more than the final layers of film. Stretch wrapping for beverages should be specified around the load and packaging line, rather than treated as a fixed routine.

Preventing movement and product damage is important, particularly when an unstable pallet can disrupt warehouse handling or dispatch. A suitable wrapping approach takes account of the product arrangement, pallet pattern and handling route. Film application and wrapper settings also need to suit the product and line rate, without creating avoidable delays or pack distortion.

This article explains what pallet-level stretch wrapping does and which product and process variables affect the result. It also sets out how to assess a wrapping process, including throughput, floor space and integration with the wider packaging line. Use the guidance to review an existing operation or prepare a more informed equipment specification.

Key Takeaways

• Understand how pallet-level wrapping contains a completed beverage load, and how it differs from wrapping individual packs or cases.
• See how bottle, can and case geometry, pack rigidity and pallet condition can affect the wrapping result.
• Learn why tighter wrapping or extra film alone may not resolve instability caused by an unsuitable pallet pattern or load.
• Use product format, pallet pattern, load dimensions, throughput and floor space to guide process decisions.
• Explore how stretch wrapping for beverages can fit between palletising and downstream handling, with equipment specified around the wider line.

Table of Contents

• Stretch wrapping for beverages: what it does to a pallet load
• How stretch wrapping contains bottles, cans and beverage cases
• Beverage pallet wrapping: common assumptions versus process realities
• How to assess a stretch-wrapping process for beverage pallets
• Integrating beverage stretch wrapping with pallet handling equipment

Stretch wrapping for beverages: what it does to a pallet load

At the end of a beverage packaging process, stretch wrapping brings the completed pallet load together for movement through the warehouse and onward through distribution. Film is applied around the load and pallet to help contain cases, trays or multipacks as one unit during handling. The result depends on the load beneath the film: wrapping supports a suitable pallet pattern, but it cannot correct an uneven, poorly arranged or unstable stack.

Pallet stretch wrapping contains a completed load for handling; retail packaging encloses or groups the products themselves. This distinction matters because shrink film around a multipack and stretch film around a pallet do different jobs. The first forms part of the product’s pack format. The second is applied after palletising to help keep the completed load together.

Stretch wrap describes the material and its use around goods, but beverage operations need to consider how it is applied at pallet level. The film pattern, load dimensions and condition of the pallet all influence the wrapped unit. A secure-looking outer layer is not a substitute for sound load formation or careful handling.

How pallet wrapping fits into a beverage packaging line

Filled bottles or cans pass through the required secondary packaging stage, where products are grouped into cases, trays or multipacks. Those units are then arranged into a pallet pattern. Pallet wrapping follows palletising, before the completed load moves into storage or dispatch. The wrapper therefore receives a load that has already been formed upstream.

Line speed and load consistency affect this operation. If pallets arrive unevenly, or faster than the wrapping stage can process them, the end-of-line flow may be interrupted. Specify the wrapping process to suit both the line rate and the consistency of the loads presented to it. Include product changeovers in the assessment if the line handles more than one format.

What makes beverage pallets a distinct wrapping application?

Beverage pallets may consist of bottles, cans, cases, trays or multipacks. These formats create different shapes and load profiles. Individual containers may be grouped in retail packs or enclosed in cases, so the outer dimensions and rigidity of each unit vary. The distribution of weight across the pallet also depends on how the units are arranged.

For example, regular layers of rigid cases present a different profile from layers of multipacks with gaps or uneven edges. Pallet condition matters too: a damaged or unsuitable base can affect how the load supports itself during movement. For stretch wrapping for beverages, assess the actual product format and pallet pattern instead of assuming one setting will suit every load.

How stretch wrapping contains bottles, cans and beverage cases

Stretch film is applied around a palletised load in overlapping layers to help hold its units together. Depending on the wrapping method and settings, film may cover the lower portion of the load, travel around its sides and secure the load to the pallet. The aim is containment during handling, not to compress every pack into a rigid block.

Load stability depends on the product, pallet pattern and wrapping conditions working together. Film tension that suits a compact, rigid case load may behave differently on a pallet of lighter trays or exposed containers. Assess the relationship between load shape and film application using the actual product, rather than relying on a general setting.

Load behaviour across common beverage pack formats

Cases often create defined edges and a relatively regular profile, although case strength, orientation and layer alignment still affect how the pallet behaves. Trays may leave more of the product exposed and have less rigid sides, while shrink-wrapped multipacks can vary in shape and contact area. Loads of exposed containers create a different profile again, particularly if individual units are not held together in a secondary pack.

These formats can respond differently to handling forces. A layer that overhangs the pallet has less support at its edges; gaps between units can leave parts of a layer less closely supported. Check both conditions when reviewing movement or distortion, while recognising that their effect depends on the specific load. Consistent layer alignment helps create a predictable profile for wrapping. An inconsistent pattern can leave uneven surfaces for the film to contain.

Beverage products can be heavy, and some packaging can be vulnerable to damage, making pallet stability a practical handling concern. Palcut discusses related risks in its overview of Pallet Stability in the Beverage Industry. For wrapping, the key is to consider the whole load, including how its units are arranged and supported, rather than focusing on the outer film alone.

Containment, film application and load integrity

Containment requires a balance. Film needs to hold the load together, but excessive or poorly matched tension may distort less rigid packs or affect exposed product. Overlap and wrap pattern also influence how film is distributed across the load. The suitable combination depends on load dimensions, pack format and pallet condition, so a fixed number of wraps or one film specification cannot be assumed to suit every beverage pallet.

For a useful application trial, use representative loads and assess completed pallets after wrapping and normal handling. Record film tension, overlap and wrap pattern, alongside any visible pack distortion, movement or damage. Where practical, change one setting at a time so the effect is easier to identify. This gives you a sound basis for refining stretch wrapping for beverages, without relying on extra film to compensate for a poor pallet pattern.

Phoenix Handling Solutions supplies pallet wrapping machinery and stretch films. Its equipment can be specified around product type, throughput and available floor space, helping you match the wrapping stage to the load and line.

Beverage pallet wrapping: common assumptions versus process realities

A common assumption is that a tighter wrap automatically creates a safer pallet. It doesn’t. Film application can help contain a load, but the result also depends on how products are arranged, how well the packs support one another and whether the pallet provides a sound base. Increasing tension or adding layers without assessing those factors may use more material without addressing the cause of movement.

For stretch wrapping for beverages, the useful comparison is not simply “more film” versus “less film”. Ask whether the application provides suitable containment for the specific load while maintaining pack integrity and a repeatable process. Check any conclusion about improved stability against representative loads and normal handling conditions.

Does more film always mean a more secure beverage pallet?

Film quantity is only one part of the wrapping process. A pallet with uneven layers, unsupported edges or a weak base may remain difficult to contain, even when additional film is applied. A suitable pattern with well-aligned packs can present a more consistent profile for wrapping. The outcome depends on the complete load and how the film is applied.

There are trade-offs to consider. Greater tension or additional film could affect less rigid packs, while inconsistent settings can make results vary between shifts or load formats. Extra material may also be used without a clear improvement in containment. Assess these possibilities in the specific operation rather than assuming they apply to every beverage pallet.

Instead of adopting a fixed wrap-count rule, compare trials using the same representative product and pallet pattern. Record application settings, then inspect the wrapped load for movement, distortion or damage during normal handling. Change settings in a controlled way and check whether the result is repeatable. A setting that works for rigid, uniform cases should not automatically be carried over to trays or multipacks with a different shape or support profile.

When might a different packaging approach be relevant?

Shrink wrapping and pallet stretch wrapping serve different stages. Shrink film may be used around cases or multipacks to group or enclose products as part of secondary packaging. Pallet stretch film is applied after palletising, around the completed load, to help contain its units during handling. One does not replace the other by default.

The right combination depends on the product format and distribution requirements. A multipack may already be enclosed, but that does not secure the full pallet load by itself. Equally, pallet wrapping is not a substitute for choosing secondary packaging that suits the product and how it will be handled before palletising. Review each stage according to its purpose, then consider how the resulting pack units form a stable, consistent pallet.

Separate observed problems from assumptions when deciding what to change. Identify whether movement begins within a pack, between pallet layers or across the load as a whole. This helps direct trials towards the relevant stage, instead of relying on tighter wrapping as a universal remedy.

How to assess a stretch-wrapping process for beverage pallets

Start an assessment with the loads the line actually produces, then test how the wrapping approach performs within the available space and operating schedule. For stretch wrapping for beverages, a specification based on one product format may overlook changes in pack dimensions, pallet patterns or production rate. Gather operating information first, then use representative loads to review containment and line fit.

Specify the load and operating conditions

Build a clear picture of the products, pallets and line before comparing equipment options. Record current formats and normal variations, including the pallet base and dimensions of completed loads. Map the wrapper’s position in relation to upstream supply and downstream handling, so the specification reflects the full route through the end-of-line area.

1. List the pack formats. Record whether products are presented as bottles, cans, cases, trays or multipacks. Note differences in case or tray arrangement that could affect the load profile.
2. Describe the pallet build. Document the pallet type, layer arrangement, alignment, load height and footprint. Include variations between product patterns rather than relying on a single typical load.
3. Measure operating demand. Set out required throughput, shift pattern and product changeovers. Note whether pallets arrive steadily or vary with upstream production, as this affects how the wrapping stage fits into the line.
4. Map the available space and interfaces. Measure the proposed equipment area and identify how pallets arrive and leave. Consider conveyor connections, transfer points, operator access, equipment access for maintenance and existing handling constraints.

These inputs help define the practical boundaries for equipment selection. Phoenix Handling Solutions specifies pallet wrapping machinery around product type, throughput and available floor space. For further selection considerations, see the industrial pallet wrapping machine buying guide.

Validate the wrapping approach in operation

Trial representative loads, including formats that differ in size, rigidity or pallet pattern. Assess application settings on actual beverage pallets, then repeat the trial to see whether the process gives consistent results across normal variation. A trial on one uniform load may not show how the operation responds to a less regular pattern or product changeover.

Agree acceptance criteria before testing. These could include acceptable load movement, visible pack distortion or damage, consistency of application, and whether wrapped pallets pass through relevant handling stages without interrupting normal flow. Record the settings and observations for each trial, then review them against load-integrity and operational requirements. This creates a traceable basis for adjusting the process instead of relying on subjective judgements, such as whether a pallet simply looks secure.

To align the assessment with your line and product mix, explore pallet wrapping machinery specified for your operation.

Integrating beverage stretch wrapping with pallet handling equipment

A pallet wrapper is one stage in an end-of-line flow, not an isolated operation. It receives completed pallets after palletising, applies film, then releases them for movement into storage or dispatch. The sequence needs to suit how pallets arrive, are presented for wrapping and leave the area. For stretch wrapping for beverages, integration should account for the load as well as the equipment around it.

Where a pallet wrapper fits in an end-of-line system

The wrapper’s position depends on the line configuration. Upstream palletising determines how completed loads are delivered and whether their orientation is consistent. Conveyors or other material-handling equipment may transfer pallets to and from the wrapping point, while downstream handling determines where wrapped loads go next. Each interface needs to support the operating sequence without creating avoidable waiting or obstructing pallet movement.

Transfer points matter. A pallet must arrive in a position the wrapping process can accommodate and leave with a clear route to its next destination. Layout planning should account for operator access, routine equipment access and the space needed to move pallets safely. These considerations can affect the wrapper’s location and how it connects with existing conveyor systems or handling equipment. Fitting the available floor area is only part of the requirement: the machine also needs to work with the line’s actual flow.

From beverage load requirements to an equipment specification

Equipment selection should translate operating requirements into a practical line arrangement. Relevant details include the mix of bottles, cans, cases, trays or multipacks; pallet types and completed load dimensions; required throughput and product changes; available floor space; and the position of upstream and downstream handling. Together, these details help determine how the wrapping stage can fit the production and logistics process.

Consider variations as well as the standard load. A line handling several pack formats may need to accommodate different pallet footprints or heights while maintaining the required production flow. Accurate information about the existing line helps identify interface requirements and constraints before equipment is specified. It also provides a sound basis for deciding whether standard or custom-engineered packaging equipment better suits the application.

Phoenix Handling Solutions supplies pallet wrapping machinery, stretch films and packaging automation, with equipment specified around product type, throughput and available floor space. Its system-supply role can connect the wrapping requirement with the wider line configuration, rather than treating the wrapper as a standalone purchase. Useful project information includes representative load formats, pallet dimensions, operating demand, a layout of the available area and details of existing handling interfaces.

To discuss pallet wrapping in the context of your beverage line, contact Phoenix Handling Solutions Limited.

Plan the next step for your beverage line

A wrapping review can be a practical starting point for a wider packaging-line decision. Identify which product formats, operating changes or layout constraints should shape the specification. A clear view of these priorities helps keep equipment decisions grounded in the demands of the line, rather than assumptions based on a single load.

For stretch wrapping for beverages, bring production, packaging and logistics requirements together before defining a project. Phoenix Handling Solutions can translate product mix, throughput and available floor space into an equipment specification suited to the operation.

Prepare representative load details, pallet dimensions, throughput requirements and a layout of the wrapping area, then discuss your beverage pallet-wrapping project with Phoenix Handling Solutions.

Frequently Asked Questions

What is stretch wrapping for beverages?

Stretch wrapping for beverages applies stretch film around a completed pallet load to help hold its units together during handling. It differs from shrink wrapping, which encloses bottles, multipacks or cases as part of product packaging. For example, a pallet of shrink-wrapped multipacks may still need a separate pallet-level wrapping step. Assess each finished load in its normal condition, including any changes between product runs.

Can stretch wrapping damage bottles or cans?

An unsuitable application can contribute to pack distortion, although the outcome depends on the packaging and process. Check a representative pallet for crushed cases, deformed trays, scuffed containers or shifted layers immediately after wrapping and after relevant handling. Compare findings across formats rather than drawing conclusions from one product. Do not treat higher film tension as a reliable remedy; validate any damage or performance claim through application testing.

How many layers of stretch film should a beverage pallet have?

There is no universal layer count for beverage pallets. A load of robust cases and a pallet of lighter trays may behave differently, even if their overall dimensions are similar. Establish a suitable application through controlled trials using the intended products, pallet pattern and handling route. Record settings and inspection results, then repeat the assessment after product or process changes. Avoid copying another line’s setting without testing your load.

Does stretch wrap make a beverage pallet waterproof?

No. Stretch film should not be assumed to make a pallet waterproof or provide a specified level of moisture protection. Coverage, load shape, film properties and exposure all affect the result, and gaps may remain around or between products. If a delivery route involves rain, wash-down or other moisture exposure, assess the packaging as a whole and verify any protection claim against the actual conditions.

Is stretch wrapping suitable for both bottles and cans?

It can be used with palletised bottles and cans, but one wrapping application may not suit both formats. A pallet of cased bottles, for example, presents different pack geometry from trays of cans or shrink-wrapped multipacks. Consider how each format is arranged and supported, then assess it as a complete load. This helps identify whether a process that works for one product needs adjustment before use with another.

Can beverage pallet wrapping be integrated into an automated line?

Yes. Pallet wrapping can be incorporated into an automated end-of-line arrangement when the equipment and pallet flow are designed together. The assessment should account for palletising output, conveyor transfer points, downstream movement, required throughput and available floor space. A layout may need to accommodate product changeovers as well as movement of completed pallets. Use representative operating data and a line layout to inform the specification.

Types of Stretch Wrappers: How the Main Machine Designs Work

When comparing the types of stretch wrappers, start with one practical question: what moves around the pallet? The pallet may rotate, the film carriage may travel around a stationary load, or a ring may carry the film around it. That operating principle affects how the wrapper handles different loads and fits into a packaging line.

Turntable, rotary-arm and robotic wrappers are easier to compare once you follow that movement. This guide explains how the main designs apply film, what to consider about load stability and floor space, and how to narrow down the options for your operation.

We’ll look at turntable wrappers, where the pallet rotates; rotary-arm wrappers, which wrap a stationary pallet; and mobile robotic wrappers, which travel around the load. We’ll also cover orbital and ring-straddle designs, automation levels and practical checks for planning a wrapping station.

Key Takeaways

• Compare the types of stretch wrappers by identifying what moves during wrapping: the pallet, the film carriage or the wrapping structure.
• Turntable and rotary-arm designs handle pallet movement differently, which can affect their suitability for particular loads and layouts.
• Orbital and ring-straddle wrappers offer other ways to apply film. Consider how the load is presented and how each design fits the line.
• Match wrapper type to load characteristics, wrapping frequency, workflow and available floor space before comparing machine specifications.
• Plan how the wrapper connects with upstream product flow and downstream handling, as well as how it will be loaded and unloaded.

Table of Contents

• What is a stretch wrapper and how does it wrap a pallet?
• How the main types of stretch wrappers move the load and film
• Stretch wrapper types compared: operation, layout and trade-offs
• How to match a stretch wrapper type to your operation
• Where Phoenix Handling fits into stretch wrapper planning

What is a stretch wrapper and how does it wrap a pallet?

A stretch wrapper applies stretch film around a unitised pallet load to help hold products together for storage or transport. The film contributes to load containment, but wrapping alone does not guarantee that goods will remain undamaged or secure in every handling condition.

The Stretch wrap is drawn from a roll and laid around the load in overlapping passes. The machine design determines how those passes are made, while the load and application determine the wrapping pattern and settings required.

The types of stretch wrappers are easiest to understand by tracking what moves: the pallet, the film carriage or another part of the wrapping mechanism. That distinction explains how the machine applies film. The load’s shape, stability and handling requirements determine what containment the wrapping process needs to provide.

How does machine stretch wrapping work?

The film is dispensed from a carriage or other feed point as the machine and load move relative to one another. Successive passes overlap to cover the load. Film tension draws the wrap around the products, while the number and placement of passes contribute to containment. Settings and film choice should suit the load’s shape, stability and handling requirements.

A tall load and a compact load, for example, may need different wrapping patterns to cover their surfaces appropriately. The aim is a consistent wrap suited to the product, not simply the greatest possible film tension. Excessive or poorly distributed tension can affect the load, so the film and wrapping pattern need to work together.

What separates hand wrapping from machine wrapping?

With hand wrapping, an operator guides the film around the pallet and controls its application during the task. The result can depend on how the operator moves, applies tension and overlaps each pass. Machine wrapping uses a powered or mechanically guided process to apply film according to set parameters, helping make the wrapping pattern more repeatable from load to load.

That repeatability may help an operation standardise wrapping, although the practical effect depends on load variation, workflow and how the equipment is used. Machine wrapping also changes how people interact with the task. It does not remove the need for suitable operating procedures or attention to load stability.

Before comparing machine layouts, consider the finished unit: whether products shift easily, whether pallets are built consistently, and how wrapped loads will be moved. These details help explain why a wrapping pattern that suits one load may not suit another. They also provide useful context for comparing machine designs.

How the main types of stretch wrappers move the load and film

The operating principle is the clearest way to distinguish the main types of stretch wrappers. Does the pallet rotate, does a film carriage travel around it, or does a ring carry the film around the load? Manufacturers may use different labels for similar arrangements, so focus on the movement and pallet handling rather than the name alone.

In brief, a turntable rotates the pallet beneath a dispensing carriage; rotary-arm, orbital and ring designs move the wrapping mechanism around a pallet that is generally held still or conveyed through the wrapping area. This difference affects how a load is presented to the machine and how the wrapper fits into the available floor space.

Turntable and rotary-arm stretch wrappers

A turntable wrapper rotates the pallet while a film carriage dispenses film beside it. The load needs to tolerate that rotation without shifting. A rotary-arm wrapper keeps the pallet stationary and moves the arm and film carriage around it. This can be practical where rotating a particular load is unsuitable, provided the layout allows for the arm’s movement.

A tall or unstable load, for example, may be harder to handle if rotation causes products to move. A stationary-pallet design avoids that rotation, but needs space for the arm’s travel. Load shape is only one consideration: pallet infeed, operator access and the surrounding workflow also affect which movement is practical.

Orbital, ring and ring-straddle wrappers

Orbital or ring designs use a film-carrying ring that travels around the load. The ring’s orientation and the way the pallet is presented depend on the equipment design. Ring-straddle wrappers also use a moving ring, with a frame arranged around the pallet path. The pallet may be positioned at the wrapping station or conveyed through the ring. Terminology and layouts vary, so compare the actual movement rather than relying on the label.

Look at where the pallet enters and leaves, whether it moves during wrapping, and how much space the ring or arm needs. An industry overview of types of stretch wrappers provides further context on wrapper categories and applications. For this comparison, the key distinction remains the movement of the pallet and film-carrying mechanism.

Film construction is a separate consideration from wrapper layout. Film type and settings need to suit the load and application; the dedicated film guide can cover material selection in more detail. To compare machine designs, first map the load’s route through the wrapping area and identify which component needs to move around it.

Phoenix Handling Solutions Limited supplies pallet wrapping machinery and related packaging systems. Consider how the wrapper fits with product flow before and after wrapping. View pallet wrapping machinery as part of that wider line-planning process.

Stretch wrapper types compared: operation, layout and trade-offs

Compare the types of stretch wrappers by looking at pallet movement, the wrapping mechanism and the space needed around the wrapping zone. These design features are separate from automation level: turntable or ring describes how wrapping happens, while semi-automatic or automatic describes how much of the process involves an operator.

The table summarises typical arrangements. Machine layouts vary, and throughput and suitability depend on the configuration, load and application.

 Design

 Pallet movement

 Wrapping mechanism

 Layout and typical operating context

    Turntable

 Rotates during wrapping

 Film carriage dispenses film as the pallet turns

 Requires room for the turntable and pallet rotation; suited to loads that can be rotated as part of the wrapping cycle.

   Rotary arm

 Usually stationary during wrapping

 Arm and film carriage travel around the pallet

 Needs clearance for arm movement; may suit operations where rotating the load is impractical.

   Orbital

 Held stationary or positioned through the wrapping area, depending on design

 A film-carrying ring moves around the load

 Layout depends on ring orientation and how the load is presented; consider access around the wrapping zone.

   Ring-straddle

 Stationary at the wrapping point or conveyed through the frame

 A ring travels around the load within a straddle structure

 Can be arranged around a pallet path; infeed, outfeed and frame clearance shape line integration.

  Semi-automatic versus automatic stretch wrappers

On a semi-automatic wrapper, an operator commonly positions the pallet, attaches or prepares the film and starts the cycle. Depending on the machine, the operator may also finish the wrap and arrange removal. Automatic systems can transfer pallets through the wrapping cycle using conveyors, with more of the process coordinated as part of a packaging line. The division of tasks varies by configuration.

Automation does not determine the wrapping mechanism. Classify a machine by how its pallet and film move, then separately consider how loading, cycle initiation and unloading are handled. Capacity depends on the machine configuration, so compare the intended workflow rather than relying on a generic throughput figure.

Which operating trade-offs should the comparison show?

First consider whether the load can rotate without products shifting. Then assess clearance: a turntable needs space for pallet rotation, while an arm or ring needs room for its travel and supporting frame. Include operator access, guarding and the routes used to bring pallets in and take wrapped loads away.

For a standalone station, manual positioning may fit the existing workflow. A conveyorised arrangement can connect wrapping with upstream packing and downstream handling, but its infeed and outfeed need to align with the wider line. No configuration is universally best. The practical fit depends on load stability, handling frequency, layout and the required level of integration.

How to match a stretch wrapper type to your operation

Wrapper selection depends on load handling, throughput and layout. Use these factors to narrow down the machine type before comparing detailed specifications. The aim is to find a wrapping arrangement that fits the pallet’s movement and the way loads pass through your operation, not to select a design by name alone.

Start with the pallet and load

Record pallet dimensions, the full load profile, stability and any overhang. Note whether products sit evenly on the pallet or extend beyond its edges, as this affects how the load can be handled during wrapping. Consider whether rotation is practical: if products may shift as the pallet turns, a design that keeps the load stationary may be more appropriate.

Unusual shapes or variable loads need application-specific consideration. They do not automatically require a particular wrapper type, and no general machine category guarantees suitability. Use representative loads to clarify what the wrapping mechanism needs to accommodate.

Map the wrapper to workflow and floor space

Establish whether pallets arrive individually for an operator to position or move through a continuous packaging line. Then map the space needed for loading, wrapping and unloading. Include the travel area for a turntable, arm or ring, along with access for people and pallet-handling equipment.

Choose an automation level to suit the workflow, not a volume assumption alone. A standalone station may fit a process where pallets are presented one at a time; conveyor integration may be relevant when wrapping needs to connect with upstream packing and downstream handling. The available infeed and outfeed routes also affect the arrangement.

Use this simple sequence to narrow the options:

Stationary pallet? Consider a wrapper whose mechanism travels around the load, subject to space and application requirements.

Pallet can rotate? Consider a turntable arrangement if the load and handling process suit rotation.

Continuous line? Assess how either movement principle could connect with conveyor infeed and outfeed.

This is a screening tool, not a specification. A stationary pallet points towards a moving arm or ring; a pallet that can rotate may suit a turntable. If the workflow is integrated, assess how the selected arrangement fits the full line rather than viewing the wrapper in isolation.

Before comparing configurations, gather practical details: the usual pallet and load profiles, how loads reach the wrapping point, whether they can rotate, and the floor space available around the station. These observations turn a broad choice between the types of stretch wrappers into a focused discussion about movement and line fit.

Review pallet wrapping layout considerations around load handling, throughput and available floor space.

Where Phoenix Handling fits into stretch wrapper planning

A wrapper sits between the point where a pallet is formed and the point where the wrapped load is stored, moved or despatched. Its design needs to fit both the load’s route and the space around the wrapping station. The types of stretch wrappers under consideration may handle pallets differently, but each must work within the wider packaging process.

Consider the wrapper as part of the packaging line

Start by mapping how pallets reach the wrapper and leave it. A standalone station may suit a process where loads are brought to the machine individually and moved away after wrapping. In a connected line, conveyors or other handling equipment may bring loads to the wrapping point and transfer them onwards. Not every operation needs a fully automated line; the arrangement should reflect the existing workflow and intended level of automation.

Allow for the wrapper’s operating movement as well as its loading and unloading positions. A turntable needs room for pallet rotation, while a moving arm or ring needs clearance around its path. Infeed and outfeed routes can affect where the machine fits, how loads queue and whether operators can access the station. Consider these together rather than treating floor space as a single footprint measurement.

Phoenix Handling Solutions Limited supplies pallet wrapping machinery and related packaging and handling systems to manufacturers and distributors across the United Kingdom. Its wider equipment range includes conveyor systems, which may be relevant when planning how pallets move between wrapping and other stages of a line. A wrapper can also operate as a standalone station.

Plan the next step around operating requirements

Before narrowing down the options, document the information that describes the real operating conditions:

• Load profile: stretch wrapping for beverage pallets, pallet dimensions, load height, overhang and stability.
• Process flow: how loads arrive, who positions them and how wrapped pallets leave.
• Throughput: wrapping frequency and how it varies across the working day.
• Available space: room for loading, wrapping movement, unloading and any conveyor connection.

These details help distinguish a machine for an individual wrapping point from one intended to form part of a broader packaging arrangement. They also provide context for whether a standard machine or a custom-engineered system suits the project requirements. Phoenix Handling Solutions Limited supplies both standard and custom-engineered equipment, and provides equipment servicing and spare parts.

Use the documented load, process flow, throughput and floor space to guide your planning, then consider how the wrapper will connect with upstream and downstream handling. Explore Phoenix Handling Solutions Limited's pallet wrapping machines.

Turn your wrapping requirements into a practical plan

Before settling on a machine design, build a short operating brief based on the pallets your team handles. Record a representative load, its route through the work area and any points where wrapping interrupts or complicates handling. Include variations in load profile or workflow so the decision reflects normal operating conditions, not just an ideal example.

This brief gives the types of stretch wrappers a practical context and helps separate essential requirements from preferences. Note how the load must be handled, how the wrapper fits the process and what space is available. Those details support a focused discussion about machine configuration without requiring a full procurement assessment at the outset.

Phoenix Handling Solutions Limited supplies pallet wrapping and other packaging machinery, with equipment specified around product type, throughput and available floor space. Explore Phoenix Handling Solutions Limited's pallet wrapping machines and discuss a wrapping arrangement suited to your operation.

Frequently Asked Questions

What are the main types of stretch wrappers?

The main types of stretch wrappers are turntable, rotary-arm, orbital and ring-straddle machines. They differ in how the pallet is positioned and how the film-carrying mechanism moves. A turntable rotates the pallet, while an arm or ring travels around the load in other designs. Names can vary between manufacturers, so compare the machine’s movement and pallet handling arrangement rather than relying on its label alone.

What is the difference between a turntable wrapper and a rotary-arm wrapper?

A turntable wrapper rotates the pallet during the wrapping cycle, while a rotary-arm wrapper keeps the pallet still as an arm carries the film around it. This matters if a load could shift during rotation or if the wrapping area has limited clearance for an arm’s movement. A stable, regularly formed load may suit a turntable, while a load that should remain stationary may favour another arrangement.

How does an orbital stretch wrapper work?

An orbital stretch wrapper carries film around a load using a moving ring or similar wrapping mechanism. The load may remain stationary or travel through the wrapping area, depending on the machine layout. This arrangement can wrap products presented in orientations different from a conventional upright pallet load. Check how the item is held and conveyed, particularly if it is long or has exposed edges that need careful handling during wrapping.

What is the difference between a semi-automatic and an automatic stretch wrapper?

A semi-automatic wrapper usually requires an operator to position the pallet and start or finish parts of the cycle. An automatic system can coordinate more of these tasks, often as part of a conveyorised line. Automation level is separate from wrapper design: it describes operator involvement, not whether the pallet rotates or a ring moves. The appropriate arrangement depends on the wider workflow and how loads are presented to the machine.

Can a stretch wrapper handle different pallet sizes?

Some wrappers can accommodate variation in pallet dimensions, but the usable range depends on the machine configuration and its settings. Consider both the pallet base and the full load profile, including changes in height, width or overhang. A line handling two common pallet formats, for instance, may need a suitable changeover approach. Defining the range of loads the process must handle helps clarify the application requirements before specifying equipment.

Is stretch wrapping the same as stretch hooding?

No. Stretch wrapping applies film from a roll around a load in overlapping layers, whereas stretch hooding places a stretchable film hood over the pallet. The hood is drawn down around the load rather than wound around it in successive passes. Both methods are used to unitise pallet loads, but they use different machinery and film formats. The suitable method depends on the load, handling process and packaging requirements.
